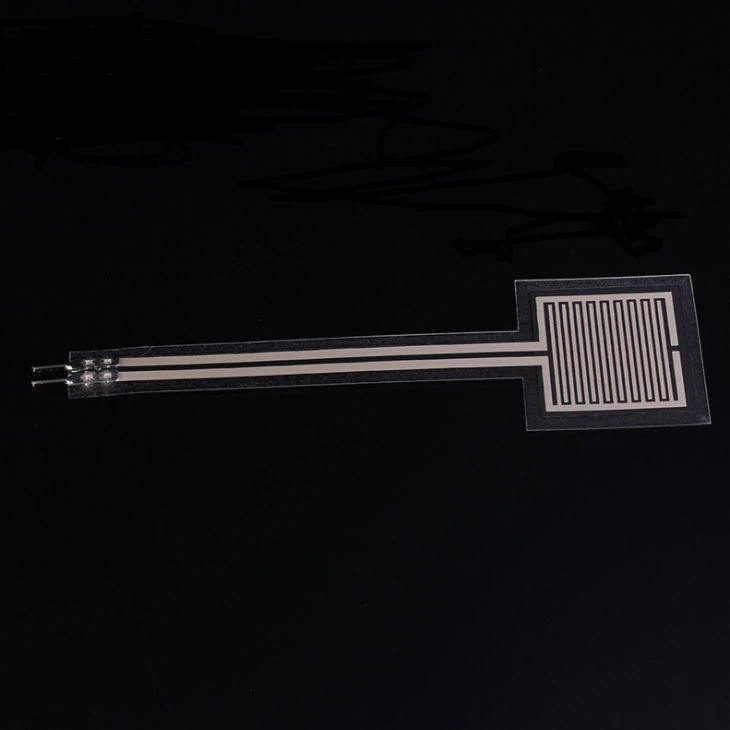

RFP-611 50kg Thin Film Pressure Sensor Force Sensing Distribution Micro Sensitive 26x26x107mm
Feature:
model: RFP-611
sensor type: Single point
Sensitive area shape: Square
Sensitive area size: 26*26mm (±1mm)
Total length of sensor: 91mm (±1mm)
Sensor lead length: The longest is 65mm (±1mm), the shortest is 10mm (±1mm) (short contact needs to contact customer service)
Sensor thickness: 0.2mm
Film material: Polyester
Range: Optional
Terminal type: Male terminal (please contact customer service for the female terminal)
Sensor principle: Piezoresistive
Service life: More than 500,000 times
Response time: Us level
Operating temperature: -25°C~70°C
