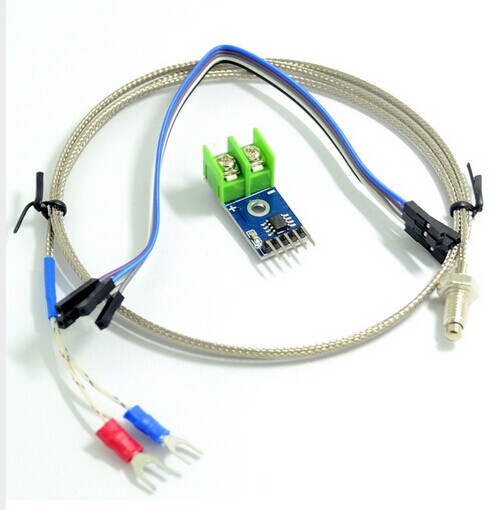

MAX6675 Module + K Type Thermocouple Thermocouple Sensor Can Measure 1024 Degrees

MAX6675 is the United States MAXIM production with cold end compensation, linear correction, thermocouple disconnection detection of 12 bit resolution serial K type thermocouple analog to digital converter. The main features of MAX6675 are as follows 1, simple SPI serial port temperature value...

Send InquiryChat Now
Product Details

MAX6675 is the United States MAXIM production with cold end compensation, linear correction, thermocouple disconnection detection of 12 bit resolution serial K type thermocouple analog to digital converter.

The main features of MAX6675 are as follows

1, simple SPI serial port temperature value output.

2, 2 degrees Celsius to 1024 degrees Celsius temperature range, the converter temperature resolution is 0.25 degrees C.

3, the film inside the cold end compensation.

4, high impedance differential input.

5, thermocouple disconnection detection.

6, working voltage range of 3 ~ 5 5V, working current 50mA.

7, the operating temperature range of -20 degrees C ~ 85.

ESD signal 9, 2000V.

Interface module:GND VCC SCK CS SO

Power supply voltage:3~5V DC

The size of the module:15mm*25mm


Kuongshun Electronic, one of the international well-known manufacturers and suppliers of max6675 module + k type thermocouple thermocouple sensor can measure 1024 degrees which is situated in China, now has quality products for sale. We are equipped with a group of professional and experienced workers, as well as advanced equipment. You can rest assured to buy discount and low price max6675 module + k type thermocouple thermocouple sensor can measure 1024 degrees made in China from us and check the pricelist with us.

Hot Tags: max6675 module + k type thermocouple thermocouple sensor can measure 1024 degrees suppliers China, manufacturers, low price, buy discount, pricelist, price, made in China
