Product Description
Note: The color of the item may vary slightly due to photography and your own computer
Feature:

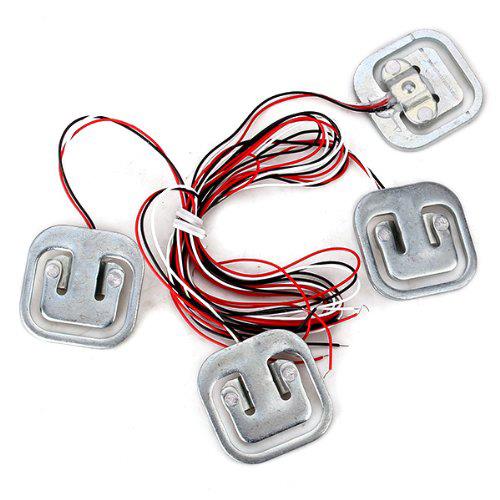

This is a half-bridge load sensor, which is widely used in weight scales. When the half-bridge is being stretched, it sends signal via the red signal wire.
You can use multiple load sensors simultaneously to increase the capacity range,Parallel use to add additional capacity.
Used widely in hopper scales, platform scales, platform balance, belt scales and other electronic weighing devices.
Specification:
Model: YZC-161
Material: Steel
Range: 50kg
Dimensions: 28x26x6mm (with head height)/1.1 x 1.02 x 0.24"
Sensor thickness: 2mm
Rated Load: 50kg
Rated output: 1.0 ± 0.1mV/V
Nonlinear: 0.08% F.S
Hysteresis: 0.1% F.S
Repeatability: 0.05% F.S
Creep (5 minutes): 0.05% F.S
Temperature Effect on Output: 0.02% F.S/°C
Temperature Effect on Zero: 0.02% F.S/°C
Zero Balance: ± 0.1000 mV/V
Input impedance: 1000 ± 20% Ω
Output impedance: 1000 ± 20% Ω
Insulation resistance: 2000 MΩ
Safety overload rate: 120% F.S
Ultimate Overload rate: 150% F.S
Operating temperature range: -20 ~ 65°C
Recommended Operating Voltage: 5 VDC
Maximum operating voltage: 8VDC
Material: Aluminum
Protection: IP65
Cable ¦Õ0.8 x 420 mm
Wiring: red, black, White
Weight:41g
