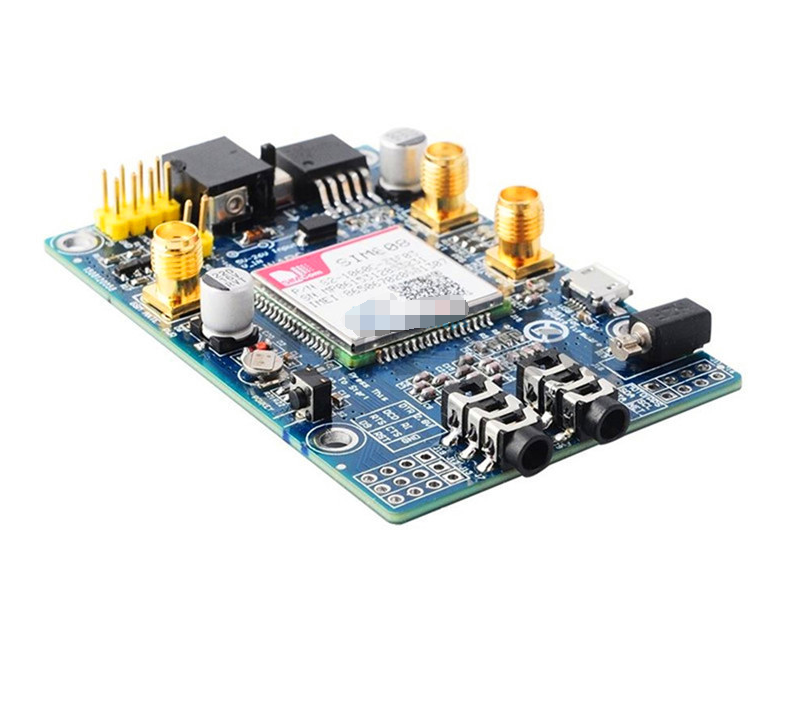

SIM808 Module GSM GPRS GPS IPX Development Board HIGH SCHOOL With The GPS Antenna

SIM808 Module GSM GPRS GPS Development Board IPX SMA with GPS Antenna for Arduino Raspberry Pi Support 2G 3G 4G SIM Card

Send InquiryChat Now
Product Details

SIM808 Module GSM GPRS GPS Development Board IPX SMA with GPS Antenna for Arduino Raspberry Pi Support 2G 3G 4G SIM Card


Operation Description:

1. Preparation:

SIM808 SHIELD

DC9V adapter

USB-TTL module or other tools.

PC software

2. Hardware configurations

2.1 Connect the USB-TTL to the UART interface


USB-TTL SIM808

TXD RXD

RXD TXD

GND GND


2.2 Insert the valid SIM card to the SIMCARD holder.

2.3 Connect the GPS antenna and GSM antenna to the board

Connect the power adapter to the DC044 Interface

2.4 Change the switch

2.6 Press the POWKEY button for 2 second, the SIM808 module will work and the other 3 LEDs will light.


Document Link:

https://www.adrive.com/public/P7QRkq/FZ1735-SIM808%20%E5%A4%A7V3.1.rar


Package Included:

1 X SIM808 Moudle

1 X GSM Antenna

1 X GPS Antenna
