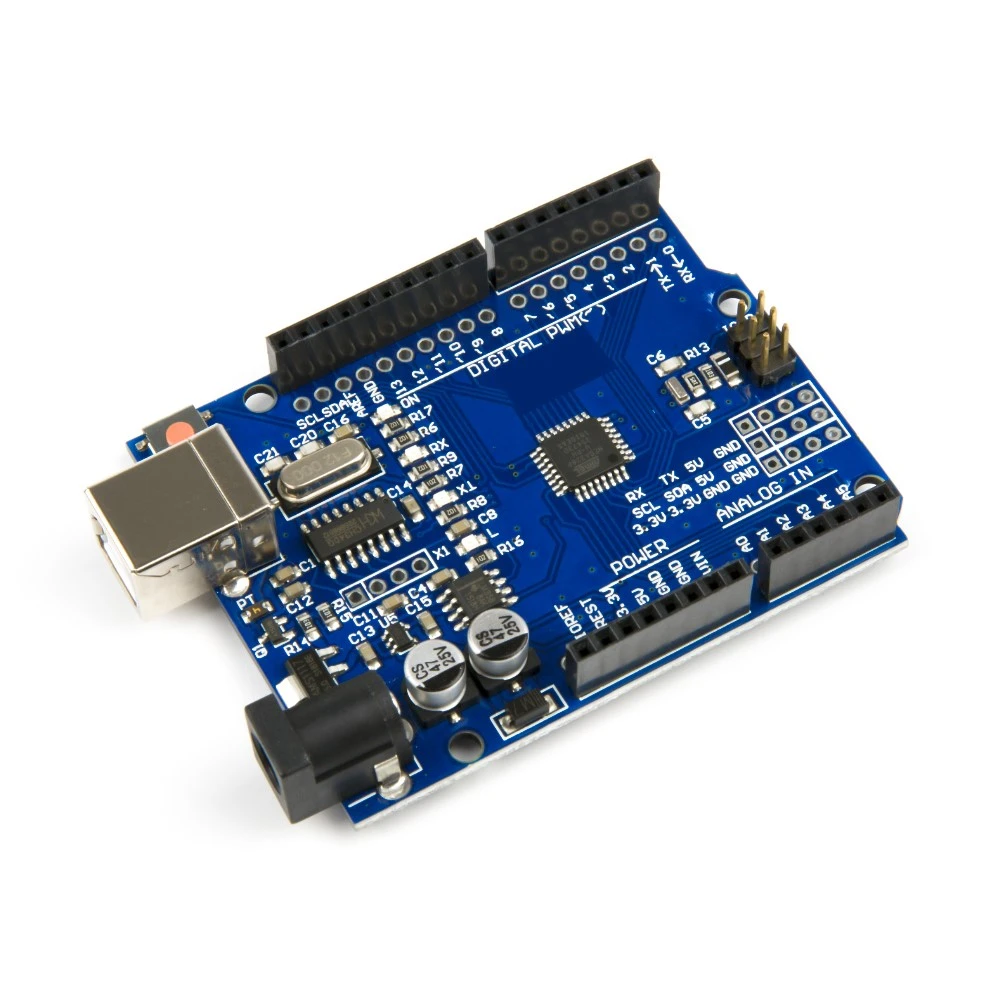

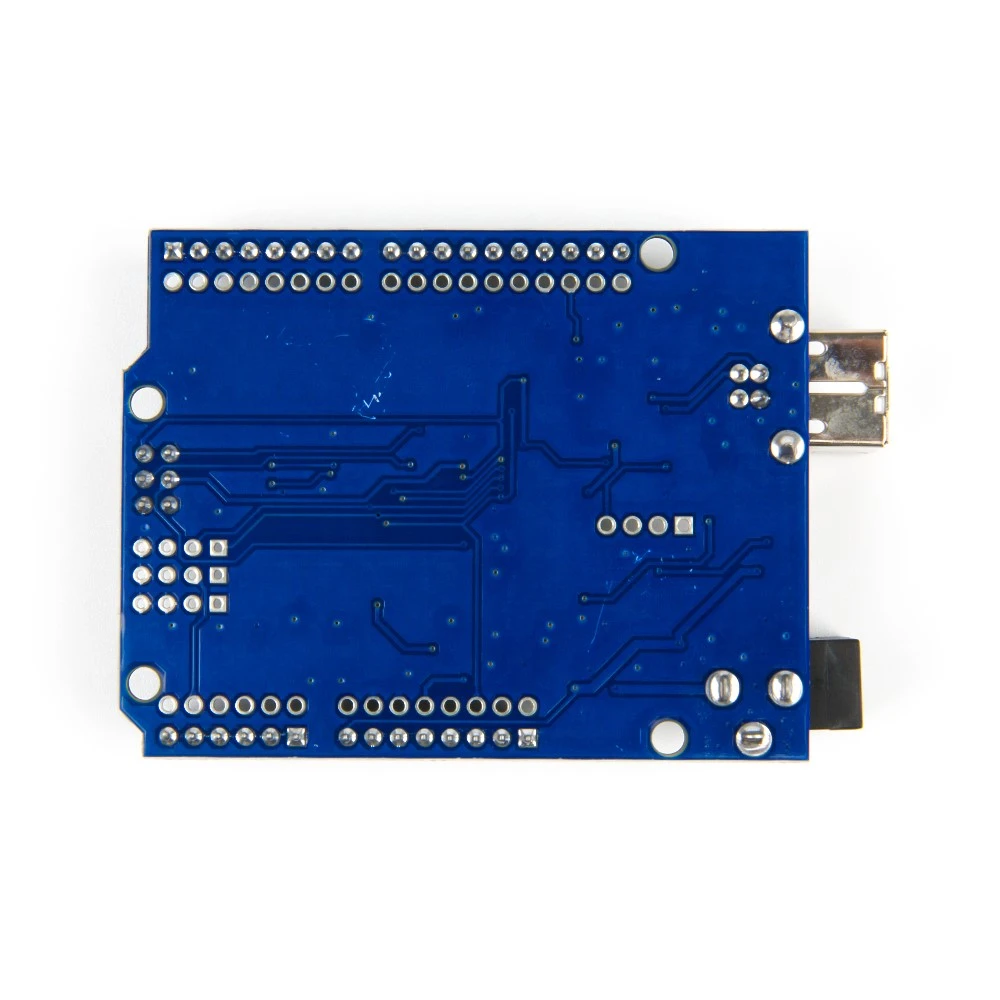

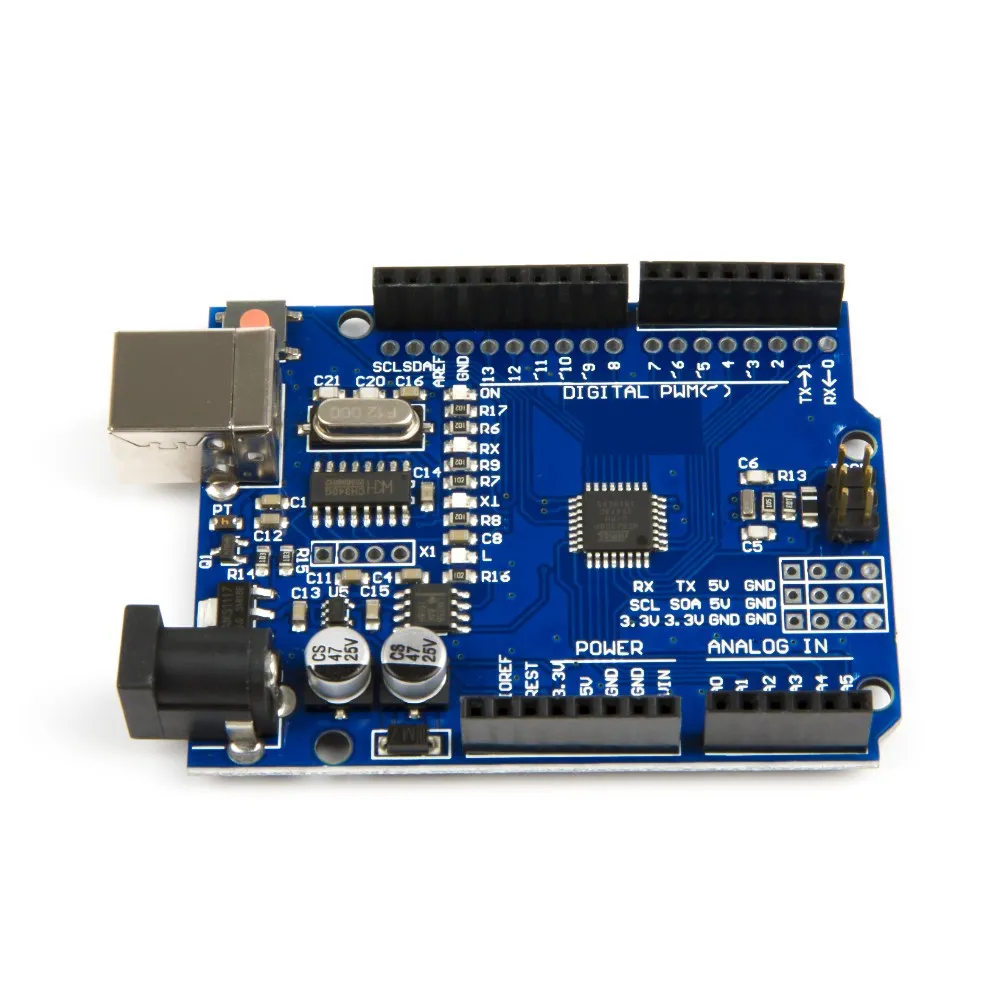

KUONGSHUN Development Board with pin headers has the same basic functions as KUONGSHUN Development Board BOARD. It is a microcontroller board based on the ATMEGA328P-AU, which has the same function as ATMEGA328P(-PU), fully compatible with ARDUINO .
It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, 2 ICSP headers, and a reset button.
This KUONGSHUN Development Board with pin headers makes the improvement based on KUONGSHUN Development board. It breaks out all the digital and analog pins in the form of 3PIN headers (G, V, S).
S pins correspond to all 14 digital pins, 6 analog pins. G pins for ground. V pins for VCC. You can control the voltage of VCC via a slide switch for 5V or 3.3V.
When switched to 5V, level on serial communication port is 5V, voltage of pins is 5V. When switched to 3.3V, level on serial communication port is 3.3V, voltage of pins is 3.3V.
lIt also breaks out two 4PIN headers for serial communication and IIC communication. So it is more easier to connect extenal sensors and modules.
lAs for KUONGSHUN Development Board , its voltage-regulator chip is NSP1117. When connect external power, output 5V, drive current is 1A.
But for this KUONGSHUN Development Board with headers, its voltage-regulator chip is MP2307DN. When connect external power, output 5V, drive current is 2A.
It contains everything needed to support the microcontroller, simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.
