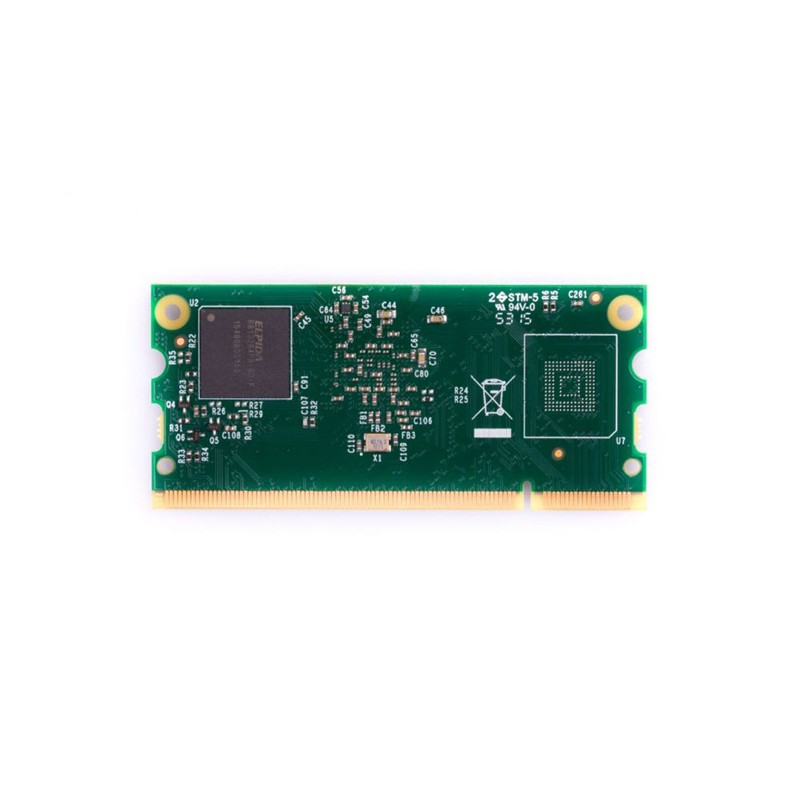

Raspberry Pi Compute Module 3 Lite BCM2837 1.2GHz quad core ARM Cortex A53 processor eMMC Flash for raspberry pi 3 B


BCM2837

64-bit 1.2GHz quad-core ARM Cortex-A53 processor

1GB RAM

4GB eMMC Flash (for CM3 only, not for CM3Lite)

200PIN SODIMM connector (35U hard gold plating I/O pins)

48 x GPIO

2 x I2C

2 x SPI

2 x UART

2 x SD/SDIO (1x SD pin on CM3 has been used for 4GB eMMC Flash)

1 x HDMI 1.3a

1 x USB2 HOST/OTG

1 x DPI (parallel RGB display)

1 x NAND(SMI)

1 x 4-lane CSI Camera Interface (up to 1Gbps per lane)

1 x 2-lane CSI Camera Interface (up to 1Gbps per lane)

1 x 4-lane DSI Display Interface (up to 1Gbps per lane)

1 x 2-lane DSI Display Interface (up to 1Gbps per lane)

Compared to CM1, the CM3/CM3L supports more OS, like Windows 10 (the free IOT-specific version from Microsoft)
