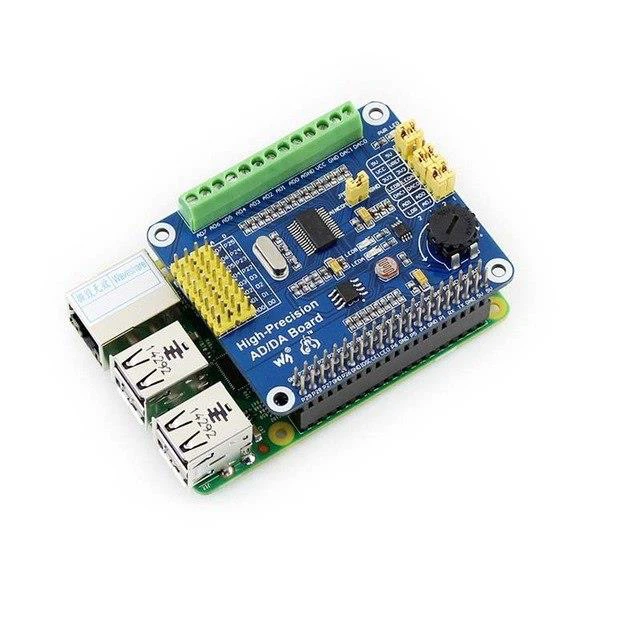

High Precision AD/DA Module ADS1256 DAC8552 For Raspberry Pi

Description:

Characteristic:

ADS1256 chip,8 channel 24 bit high precision ADC (4 channel differential input), 30ksps sampling rate

Onboard DAC8552 chip, 2 channels16 bit high precision DAC
Onboard pin package input interface,can access analog signal

Onboard terminal package input / output interface, can access analog signal and digital signal, easy to use in a variety of occasions
With AD/DA detection circuit, to observe the experimental phenomenon.

Resource profile:

Extended interface: Raspberry Pi GPIO interface, convenient access to raspberry pie AD/DA input and output interface (terminal), easy to use in a variety of occasions AD input interface(pin, convenient access to a variety of sensor module Device: 7.68M crystal LM285-2.5 Provide reference voltage for ADC chip Photosensitive resistance LED output indicator10K potentiometer DAC8552 16 bit high precision DAC, 2 channel output LED PWR Power indicator ADS1256 24 bit high precision ADC, 8 channels (4 channel differential input)

jumper settings:

ADC test jumper DAC test jumper Power configuration jumper ADC reference grand settings

AD single ended input, AINCOM for the reference, can connect the ground or the external reference level

Package Included:

1 * High-Precision AD/DA
