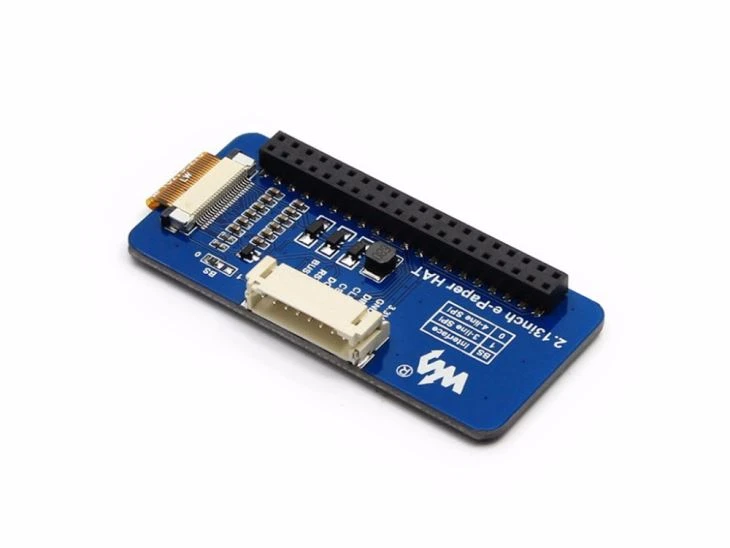

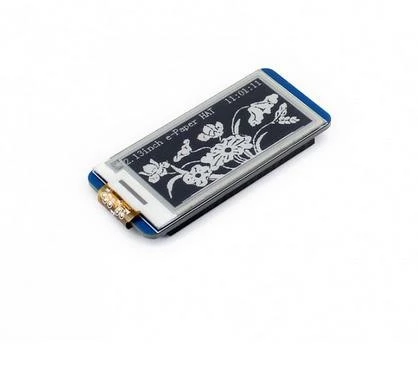

Raspberry Pi 2.13 inch Black+White Two Color E-paper HAT ink screen supports partial refresh SPI Interface 250*122 Resolution
My parameters:
Working voltage: 3.3V
Communication interface: SPI
Dimensions: 65mm x 30.2mm
Display size: 23.71mm x 48.55mm
Point pitch: 0.194 x 0.194
Rate of differentiation: 250 by 122
Color: black, white
Gray level: 2
Refresh power: 26.4mW(typ.)
Standby power: <0.017mW
Visual Angle: > 170 °
[interface description]
VCC: 3.3 V
GND: GND
NC: dangling
DIN: SPI communication MOSI pins
CLK: SPI communication SCK pins
CS: SPI slice selection pin (low level effective)
DC: data/command control pins (high level represents data, low level indicates commands)
RST: external reset pin (low level reset)
BUSY: BUSY state output pin (low level indicates BUSY)
