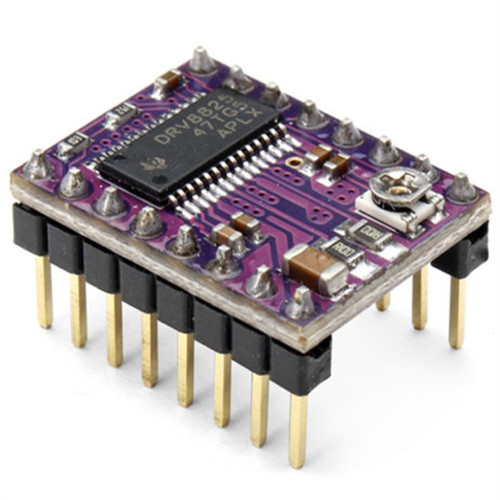

DRV8825 Stepper Motor Driver with Heatsink
buy links
Applicable for :
Stepper motor drive applications.
Build a 3D printer, CNC, engraving machine and so on .
Support 3D printers have Prusa Mendel, ultimaker, printbot, makerbot, etc.
You can refer to the back of the Arduino code, direct drive motor
The advantages compare to 4988 :
1, the maximum current of 2.5 A.
2, the highest support 32 subdivision.
3, 4 layer PCB, better heat dissipation performance.
4, chip resistance smaller, lower heat, heat better.
Parameters:
Size: 15 mmx20mm (the same as 4988)
Drive current: 2.5 A
Segmentation: 1, 1/2, 1/4, 1, 8, 1/16, 1/32
Manufacturing process: SMT placement machine manufacturing, the manual welding, the yield is higher, more stable performance
Characteristics of DRV8825 :
1, suitable for driving under 8.2 V ~ 45 V 2.5 A stepper motor;
2, only simple step by step and direction control interface;
3, six different stepping mode: full, half, 1/4, 1/8, 1/16, 1/32;
4, adjustable potentiometer can adjust the maximum current output, thereby gaining a higher step rate;
5, automatic current attenuation pattern detection/choice;
6, overheating closed circuit, under voltage lockout, cross current protection;
7, grounding short circuit protection and load short circuit protection
